One of the key decisions you’ll need to make when installing a solar power system is how to connect your photovoltaic (PV) panels. There are two main options: series or parallel. Each method has its pros and cons, and the best choice depends on your specific needs and situation.

Series Connection

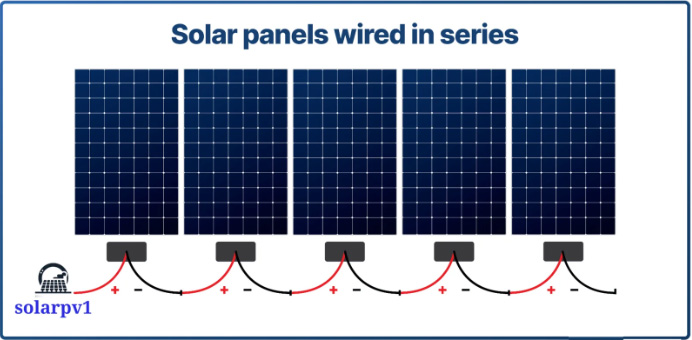

Connecting PV panels in series means connecting the positive terminal of one panel to the negative terminal of the next panel, and so on, until the last panel in the series. The voltage of the panels increases, while the current remains the same. This configuration is often used when you need to increase the voltage of your system.

One advantage of connecting solar panels in series is that it allows you to achieve a higher voltage output, which can be beneficial in certain situations. For example, if the distance between your solar panels and inverter is long, a higher voltage can help reduce power losses along the way. Additionally, some inverters require a minimum voltage input to work properly, and connecting solar panels in series can help meet this requirement.

However, there are also some things to be aware of when connecting solar panels in series. First, the performance of the entire system may be limited by the solar panel with the lowest output, because the current remains the same for the entire series. This means that if one solar panel is shaded or performs poorly, it will affect the performance of the entire series. Additionally, series connections are more susceptible to voltage drops if there is shading or dirt on any of the solar panels.

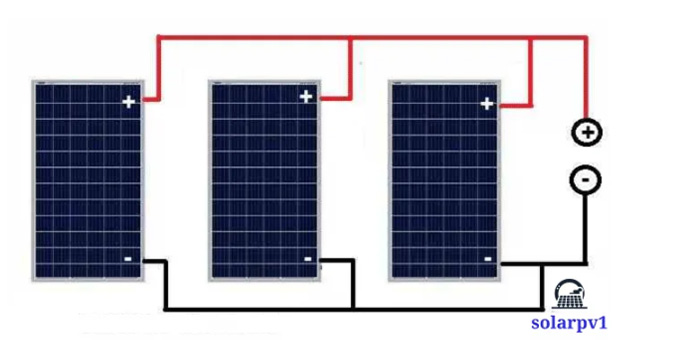

Connecting PV panels in parallel means connecting the positive of one panel to the positive of the next, the negative to the negative, and so on. In this configuration, the current increases while the voltage remains the same. Parallel connections are often used when you need to increase the current output of your system.

One advantage of connecting solar panels in parallel is that it allows you to achieve higher current outputs, which is useful in situations where your energy needs are high or your inverter requires a minimum current input. Additionally, parallel connections can help mitigate the effects of shading or dirt on individual solar panels, as the performance of the entire system is not dependent on the performance of any individual solar panel.

However, there are also some things to be aware of when connecting solar panels in parallel. First, the entire system voltage remains the same, so if you need a higher voltage output, a parallel connection may not be appropriate. Additionally, parallel connections may result in higher power losses due to the increased current flowing through the system. This can lead to increased costs and reduced efficiency.

Series and Parallel Connections

In some cases, it may be beneficial to combine series and parallel connections to achieve the desired voltage and current output. This is called a series-parallel configuration. By connecting panels in series and in parallel, you can take advantage of the benefits of both series and parallel connections.

For example, if you have a large solar array with multiple strings of solar panels, you can connect the solar panels in each string in series to increase the voltage, and then connect the strings in parallel to increase the current. This way you can optimize the voltage and current output of your system.

When deciding whether to connect PV panels in series or in parallel, it is important to consider your specific needs, available space, shading conditions, and inverter requirements. It can also be helpful to consult a professional solar installer who can evaluate your situation and provide professional advice.

In summary, connecting PV panels in series or in parallel has different advantages and considerations. Connecting in series can increase voltage output, while connecting in parallel can increase current output. Combining series and parallel can provide a balance between voltage and current. Ultimately, the best configuration depends on your specific requirements and situation.
